Brand Name : JUTAI
Model Number : SC-10D
Certification : CE, ISO, FCC
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability : 1000 pieces per month
Delivery Time : 5 - 8 working days
Packaging Details : Cartoon
Working Voltage : AC/DC10-30VDC
Maximum Transceiver Distance : 13m
Rx Cable Length : 5.5m
Operating Temperature : -42~45 ℃
Operating Humidity : 10~90%Rh
Material : ABS
Specification : 14*9*5.5 cm
Output Type : Relay
Infrared beams group : 1 pair or 2 pairs
Safety Beams Infrared Sensor For Glass Sliding Door with 10m detection range
Product Name: Automatic Glass Sensor Door Safety Beam
Product Description: The Automatic Door Safety Beam, innovated by Shenzhen Jutai Comm Co., Ltd., stands as an essential safety measure for automatic doors. This cutting-edge system, comprising infrared emitters and receivers, ensures instantaneous door cessation upon detecting obstructions, mitigating the risk of accidents such as pinching or crushing.
Advantages:
Immediate Obstruction Detection: Ensures swift door cessation upon obstruction detection, prioritizing safety in high-traffic areas.
Versatile Application: Perfect for diverse settings including bustling offices, retail outlets, and medical facilities, where safety and efficiency are paramount.
Reliable Technology: With a stable operational range of 10 meters, rapid responsiveness, and robust reliability, this system ensures consistent performance, providing peace of mind to users and operators alike.
Differentiated Copy:
Holistic Overview:
Comprehensive Summary:
Distinctive Advantages:
Key Features Highlight:
Concluding Remarks:
Working voltage | AC/DC10-30vDc |
Quiescent Current | 18mA(12V Electricity) |
Operating Current | 58mA(12V Electricity) |
Maximum Transceiver Distance | 10m |
Output Contact Normally Open And Closed | Jumper cap selection setting (Default is normally open) |
RX Cable Length | 5.5m |
Tx Cable Length | 5.5m |
Number of Beams | Single- or dual-beam option |
Operating Temperature | -42~45ºC |
Operating Humidity | 10~90%RH |
Material | ABS |
Controller Dimension | 109.5(L)*41.1(W)*25.6(H)mm |
Beam Dimension | 19(L)*13(D)mm |
![]() |

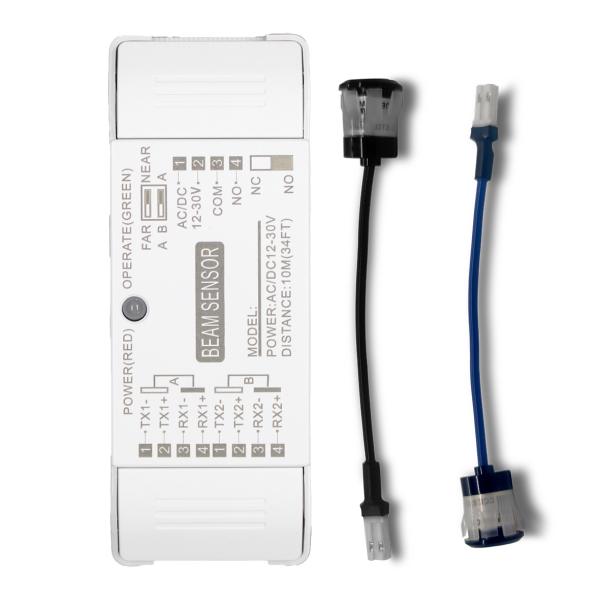

Safety Beams Infrared Sensor 10m Images |
